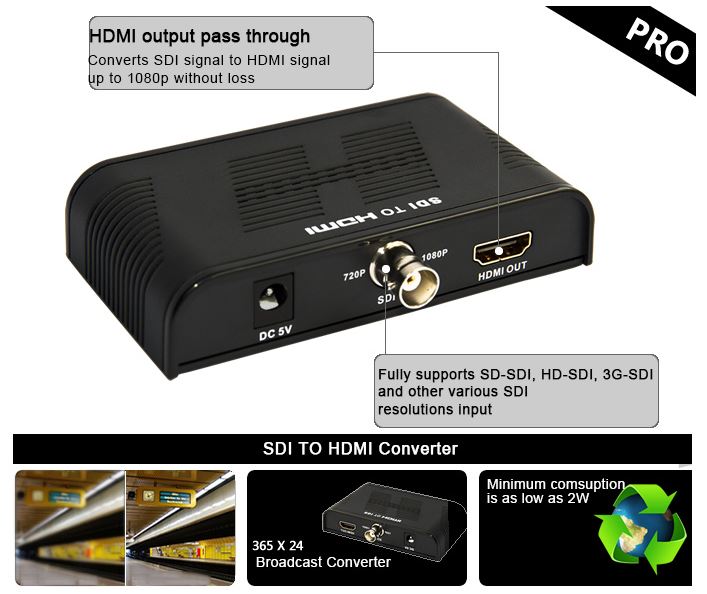

SDI to HDMI Converter converts SD-SDI,HD-SDI,and 3G-SDI signal to HDMI and ensure high bit rates of 2.97Gb/s to give users fast signal transmission without any loss.

Features

Input port: SDI * 1

Output prot: HDMI * 1

SDI format supported: SD-SDI, HD-SDI, 3G-SDI

SDI data transfer rates supported: 270mb/s, 1.485Gb/s, 2.97Gb/s

SDI input resolution supported: 720p@50Hz/60Hz, 1080i@50Hz/60Hz, 1080p@24hz/25Hz/30Hz/50Hz/60Hz" 1080p@24hz/25Hz/30Hz/50Hz/60Hz>

HDMI output resolution supported: 720p@50Hz/60Hz, 1080i@50Hz/60Hz>, 1080p@24hz/25Hz/30Hz/50Hz/60Hz" ; 1080p@24hz/25Hz/30Hz/50Hz/60Hz

This product is pass through, and without scaler,
